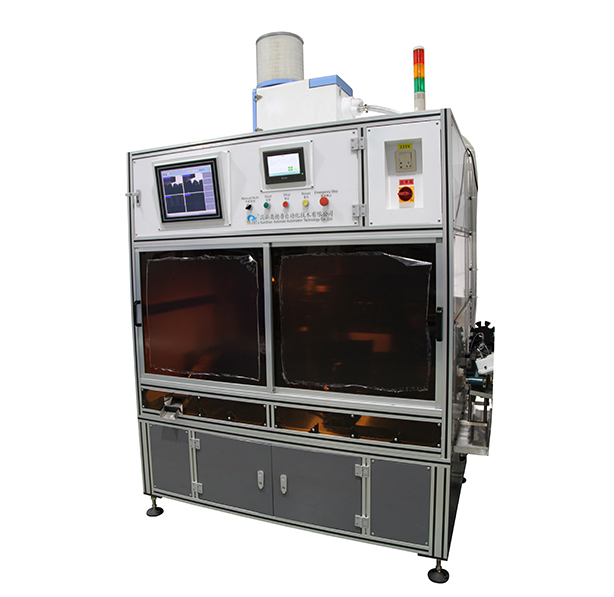

AUTO ROLLER APPEARANCE CAMERA INSPECTION MACHINE

AUTO ROLLER APPEARANCE CAMERA INSPECTION MACHINE

Main Functions

Auto appearance defect camera inspection by self-developed intelligentimage analysis software for cylindrical roller.

The surface of the product is photographed by the camera and the corresponding lighting method,which is convenient for software analysis.

To check the outer surface,both sides endface and chamfer.

Analysis and statistic for the defect type.

Process Flow

Feed In


Side A check


Side B check


Outside check 1


Outside check 2


NG Reject


OK Output

Techniacl Parameters
ModelApplicable Range (OD)Cycle Time
KS-TR-02

OD 6-13mm

L  8-30mm

0.8-1.2 s/p
KS-TR-03

OD 13-20mm

L  20-50mm

0.8-1.2 s/p
