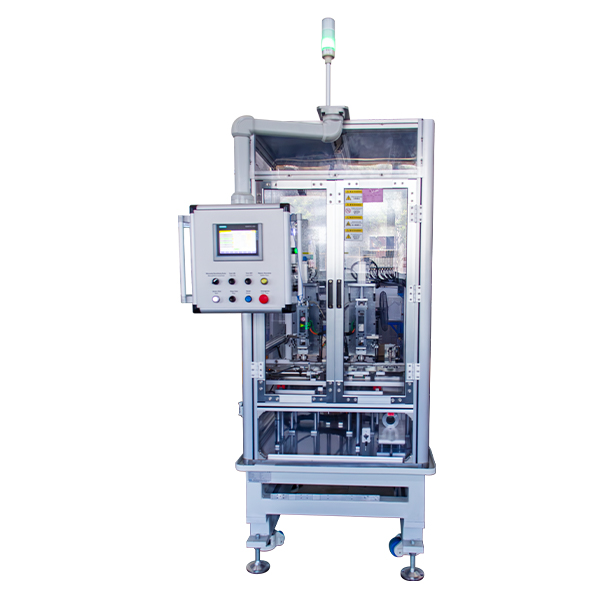

ASSEMBLY HEIGHT INSPECTION MACHINE

ASSEMBLY HEIGHT INSPECTION MACHINE

Main Functions
Process Flow

Feed In


Side A Assembly Height Check


Turn-over


Side B Assembly Height Check


NG Reject


OK Output

Techniacl Parameters
ModelApplicable Range (OD)Cycle Time
DM-BEG-02

62-110mm

3.5 s/p
