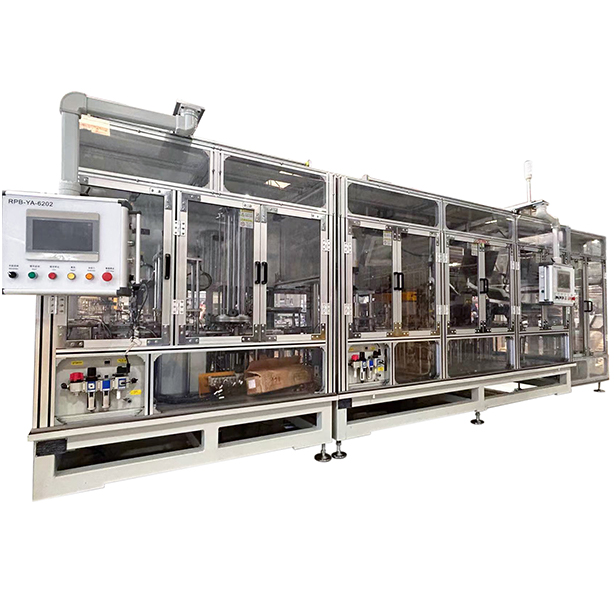

AUTO MAGNET RING RIVETING & INSPECTION MACHINE

AUTO MAGNET RING RIVETING & INSPECTION MACHINE

Main Functions

ID & OD measuring of magnetic ring,pressing,height pressing,magnetism detecting、laser marking & vision inspection

Process Flow

Feed In


Surface A ECT


Raceway ECT


Bore/OD ECT


Turn Around


Surface B ECT


NG Reject


OK Output

Techniacl Parameters
ModelApplicable Range (OD)Cycle Time
RPB-JC-02

50-70mm

7.0 s/p
