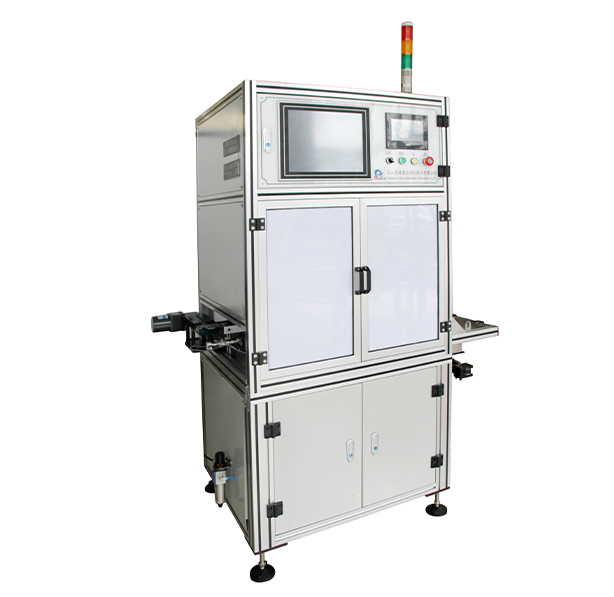

AUTO EDDY CURRENT DEFECT DETECTING MACINE FOR IR & OR

AUTO EDDY CURRENT DEFECT DETECTING MACINE FOR IR & OR

Main Functions

Detecting the crack of rings endface, circumcircle and raceway bottom

Process Flow

Feed In


Surface A ECT


Raceway ECT


Bore/OD ECT


Turn Around


Surface B ECT


NG Reject


OK Output

Techniacl Parameters
ModelApplicable Range (OD)Cycle Time
ET-BQ-02

28-62mm

2.0-3.0 s/p
